msqrob2TMT: modelling sources of variability in TMT-based proteomics experiments, a use case

Christophe Vanderaa

Stijn Vandenbulcke

Laurent Gatto

Lieven Clement

13 September 2025

Source: vignettes/msqrob2_workshop.rmd

Introduction

Mass spectrometry-based proteomics

Mass spectrometry (MS)-based proteomics aims at characterising the proteome content from biological samples. In a nutshell, the workflow starts with sample preparation where the samples are collected, and the protein content is extracted and digested into peptides. For TMT experiments, each sample is labelled and multiple samples are pooled together. Next, during the liquid chromatographt (LC) and ionisation, the peptides are passed through a chromatographic column and separated based on their physicochemical properties. Eluting peptides are ionised by an electrospray. A first round of MS records the ion’s m/z distribution for the intact ions. This provides an overview of the ions that elute from the column and allows for further separation of the ions in the m/z space. The second round of MS records the fragmented ions for a selection of ions. This provides the ion’s mass fingerprint that will later enable computational identification of the peptide sequence. The recorded spectral data is then processing using search engines leading to peptide-to-spectrum matches (PSM). Analyzing the spectral peaks generated by the TMT labels (coloured bars in the bottom of the figure) enables to quantify the corresponding peptide in its corresponding sample before pooling.

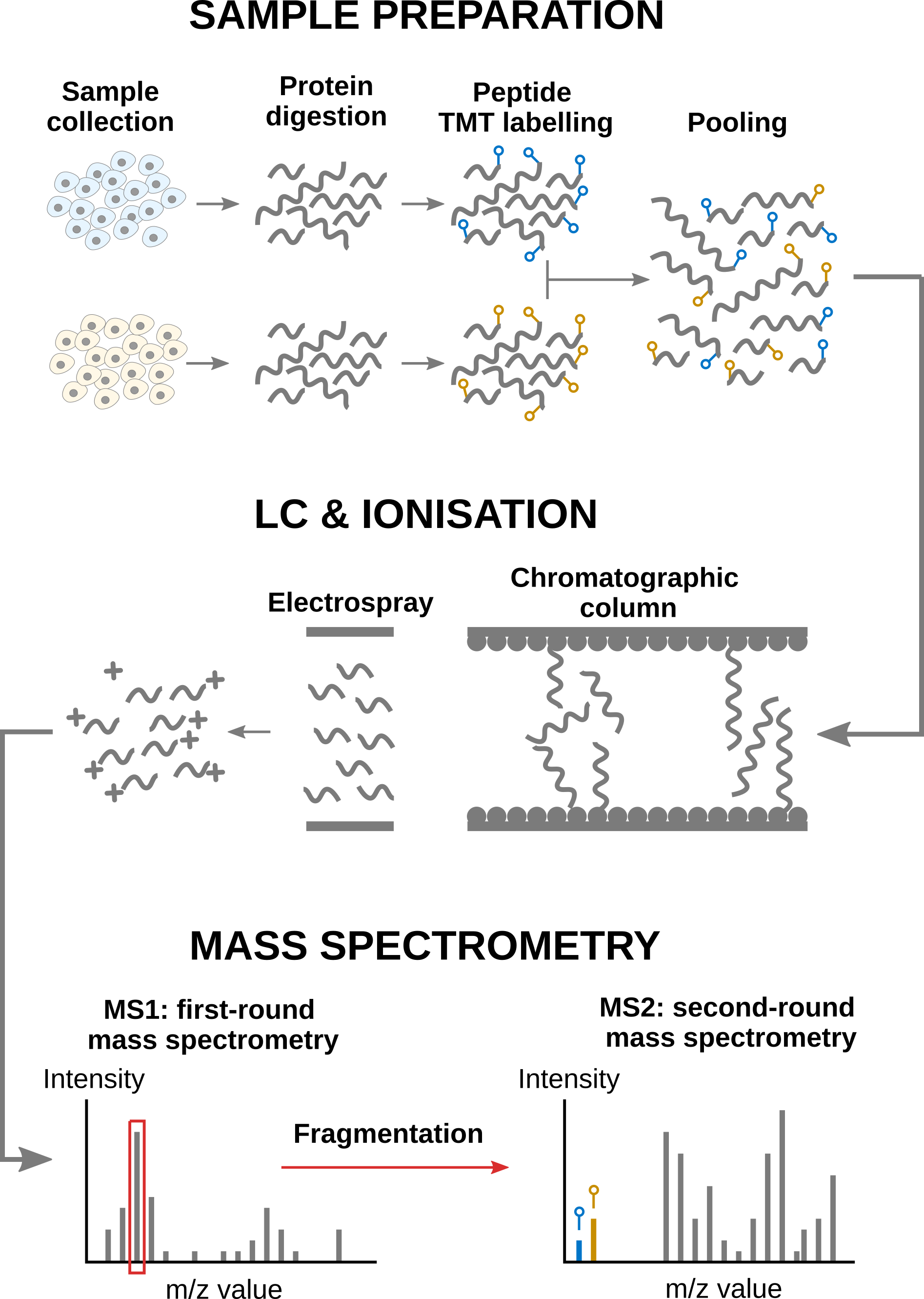

Overview of an MS-based proteomics workflow.

Overview of an MS-based proteomics workflow.

In this vignette

We will start from the quantified PSM data and infer protein-level differences between samples. To achieve this goal, we will apply the msqrob2TMT workflow, a data processing and modelling workflow dedicated to the analysis of TMT-based proteomics datasets. We will demonstrated the workflow using the study published by Plubell et al. 2017, illustrating the statistical concepts using a real-life use case.

You can read more about msqrob2TMT in:

Vandenbulcke S, Vanderaa C, Crook O, Martens L, Clement L. msqrob2TMT: robust linear mixed models for inferring differential abundant proteins in labelled experiments with arbitrarily complex design. bioRxiv. Published online March 29, 2024:2024.03.29.587218. doi:10.1101/2024.03.29.587218

Since this vignette is about a real-life study, we cannot objectively assess the results. For an msqrob2TMT analysis with ground tuth information, we refer to our spike-in vignette.

Before delving further into the use case, let us prepare our computational environment.

Load packages

First, we load the msqrob2 package.

We also load 4 additional packages for data manipulation and visualisation.

msqrob2 relies on parallelisation to improve computational speed. To ensure this vignette can be run regardless of hardware, we will disable parallelisation. Parallelisation is controlled using the BiocParallel package.

Load data

Experimental context

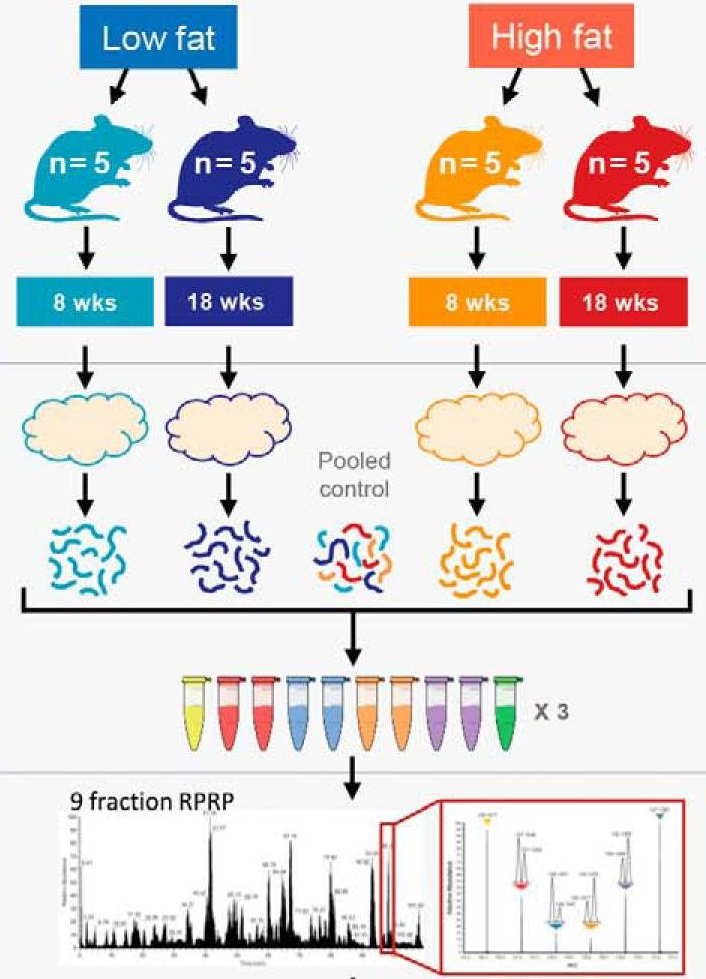

The data used in this vignette has been published by Plubell et al. 2017 (PXD005953). The objective of the experiment was to explore the impact of low-fat and high-fat diets on the proteomic content of adipose tissue in mice. It also assesses whether the duration of the diet may impact the results. The authors assigned twenty mice into four groups (5 mice per group) based on their diet, either low-fat (LF) or high-fat (HF), and the duration of the diet, which was classified as short (8 weeks) or long (18 weeks). Samples from the epididymal adipose tissue were extracted from each mice. The samples were then randomly distributed across three TMT 10-plex mixtures for analysis. In each mixture, two reference labels were used, each containing pooled samples that included a range of peptides from all the samples. Not all labels were used, leading to an unbalanced design. Each TMT 10-plex mixture was fractionated into nine parts and subjected to synchronous precursor selection, resulting in a total of 27 MS runs.

Getting the data

The data were reanalyzed by Huang et al. 2020 and have been deposited in the MSV000084264 MASSiVE repository, but we will retrieve the timestamped data from our Zenodo repository. To facilitate management of the files, we here download them using the BiocFileCache package. We need 2 files: the Skyline identification and quantification table generated by the authors and the sample annotation files. BiocFileCache ensures that the files are downloaded once, hence the chunk below will take some time only the first time you run it.

library("BiocFileCache")
bfc <- BiocFileCache()
psmFile <- bfcrpath(bfc, "https://zenodo.org/records/14767905/files/mouse_psms.txt?download=1")
annotFile <- bfcrpath(bfc, "https://zenodo.org/records/14767905/files/mouse_annotations.csv?download=1")

Now the files are downloaded, we can load the psm table. Each row in the psm data table contains information for one PSM (the table below shows the first 6 rows). Note that columns that start with "Abundance." contain the quantitative values for each TMT label.

psms <- read.delim(psmFile)
Checked Confidence Identifying.Node PSM.Ambiguity Annotated.Sequence Modifications X..Protein.Groups X..Proteins Master.Protein.Accessions Master.Protein.Descriptions Protein.Accessions Protein.Descriptions X..Missed.Cleavages Charge DeltaScore DeltaCn Rank Search.Engine.Rank m.z..Da. MH…Da. Theo..MH…Da. DeltaM..ppm. Deltam.z..Da. Activation.Type MS.Order Isolation.Interference…. Average.Reporter.S.N Ion.Inject.Time..ms. RT..min. First.Scan Spectrum.File File.ID Abundance..126 Abundance..127N Abundance..127C Abundance..128N Abundance..128C Abundance..129N Abundance..129C Abundance..130N Abundance..130C Abundance..131 Quan.Info Ions.Score Identity.Strict Identity.Relaxed Expectation.Value Percolator.q.Value Percolator.PEP
False High Mascot (A2) Unambiguous [K].aIDILDR.[SM] N-Term(TMT6plex) 1 1 Q61084 Mitogen-activated protein kinase kinase kinase 3 OS=Mus musculus GN=Map3k3 PE=1 SV=1 0 2 0 0 1 1 522.8161 1044.625 1044.625 -0.14 -0.00008 CID MS2 2.279464 10.5 42.390 63.4111 16103 PAMI-194_Mouse_U-Dd_TMT_40ug_28pctACN_25cm_120min_20160426_OT.raw F3.6 2382.454 2429.068 2707.243 3317.650 5035.093 3031.7993 4808.5522 2583.115 3103.613 2795.283 NA 40 25 18 0.0003802 0.0008956 0.0111900
False High Mascot (C2) Unambiguous [K].aLEENNNFSk.[M] N-Term(TMT6plex); K10(TMT6plex) 1 1 P55821 Stathmin-2 OS=Mus musculus GN=Stmn2 PE=1 SV=1 0 2 NA 0 1 2 812.4410 1623.875 1623.874 0.26 0.00021 CID MS2 20.489330 0.8 116.000 38.9028 7622 PAMI-176_Mouse_A-J_TMT_40ug_22pctACN_25cm_120min_20160223_OT.raw F1.3 1112.530 NA NA NA NA 389.5883 963.0698 NA NA NA NA 49 29 22 0.0000932 0.0000000 0.0000510
False High Mascot (C2) Rejected [K].eMISDIk.[F] N-Term(TMT6plex); K7(TMT6plex) 0 1 Q5SQM0 Echinoderm microtubule-associated protein-like 6 OS=Mus musculus GN=Eml6 PE=2 SV=1 0 2 0 0 1 1 647.3786 1293.750 1293.749 0.84 0.00054 CID MS2 62.114720 25.4 50.658 45.5494 10094 PAMI-176_Mouse_A-J_TMT_40ug_24pctACN_25cm_120min_20160223_OT.raw F1.4 8606.559 10042.301 7976.240 5196.599 9381.061 12227.7070 6418.2720 5791.740 9665.493 5747.680 NA 11 28 21 0.5635688 0.0016120 0.0284500
False High Mascot (C2) Unambiguous [KR].iIDFGLAR.[HQRT] N-Term(TMT6plex) 4 3 Q3UIZ8; Q5SUV5; Q8VCR8 Myosin light chain kinase 3 OS=Mus musculus GN=Mylk3 PE=1 SV=1; Myosin light chain kinase family member 4 OS=Mus musculus GN=Mylk4 PE=1 SV=2; Myosin light chain kinase 2, skeletal/cardiac muscle OS=Mus musculus GN=Mylk2 PE=1 SV=2 0 2 0 0 1 1 567.3476 1133.688 1133.688 -0.09 -0.00005 CID MS2 30.288610 13.5 41.830 70.4334 19108 PAMI-176_Mouse_A-J_TMT_40ug_30pctACN_25cm_120min_20160223_OT.raw F1.7 4964.429 5950.643 3133.549 3321.042 2914.397 3274.3197 3284.3334 4714.300 3846.105 5461.438 NA 41 24 17 0.0002663 0.0000983 0.0004159
False High Mascot (B2) Unambiguous [KR].iQLWDTAGQER.[FY] N-Term(TMT6plex) 7 1 O35963 Ras-related protein Rab-33B OS=Mus musculus GN=Rab33b PE=1 SV=1 0 3 NA 0 1 2 515.9459 1545.823 1545.822 0.49 0.00025 CID MS2 14.174430 5.2 116.000 63.1792 15687 PAMI-176_Mouse_K-T_TMT_40ug_26pctACN_25cm_120min_20160223_OT.raw F2.5 2202.812 1313.995 1942.837 2381.060 1443.969 1701.8316 968.0946 1867.904 910.823 1371.243 NA 28 28 21 0.0092083 0.0000000 0.0000261
False High Mascot (A2) Unambiguous [K].aIDILDR.[SM] N-Term(TMT6plex) 1 1 Q61084 Mitogen-activated protein kinase kinase kinase 3 OS=Mus musculus GN=Map3k3 PE=1 SV=1 0 2 0 0 1 1 522.8161 1044.625 1044.625 -0.14 -0.00008 CID MS2 21.614820 19.0 116.000 62.4027 15935 PAMI-194_Mouse_U-Dd_TMT_40ug_26pctACN_25cm_120min_20160426_OT.raw F3.5 6064.501 3790.208 4328.930 6528.889 6080.098 7705.8087 7836.0572 4606.420 5347.845 5869.469 NA 42 25 18 0.0002350 0.0005618 0.0067230

We also load the annotation table. Each row in the annotation table contains information for one sample (the table below shows the first 6 rows).

coldata <- read.csv(annotFile)
Channel Condition Run BioReplicate Mixture Fraction TechRepMixture
126 Long_LF PAMI-176_Mouse_A-J_TMT_40ug_30pctACN_25cm_120min_20160223_OT.raw PAMI-176_Mouse_A-J.X126 PAMI-176_Mouse_A-J 40ug_30pctACN_25cm_120min_20160223 1
126 Long_LF PAMI-176_Mouse_A-J_TMT_40ug_28pctACN_25cm_120min_20160223_OT.raw PAMI-176_Mouse_A-J.X126 PAMI-176_Mouse_A-J 40ug_28pctACN_25cm_120min_20160223 1
126 Long_LF PAMI-176_Mouse_A-J_TMT_40ug_90pctACN_25cm_120min_20160223_OT.raw PAMI-176_Mouse_A-J.X126 PAMI-176_Mouse_A-J 40ug_90pctACN_25cm_120min_20160223 1
126 Long_LF PAMI-176_Mouse_A-J_TMT_40ug_40pctACN_25cm_120min_20160223_OT.raw PAMI-176_Mouse_A-J.X126 PAMI-176_Mouse_A-J 40ug_40pctACN_25cm_120min_20160223 1
126 Long_LF PAMI-176_Mouse_A-J_TMT_40ug_22pctACN_25cm_120min_20160223_OT.raw PAMI-176_Mouse_A-J.X126 PAMI-176_Mouse_A-J 40ug_22pctACN_25cm_120min_20160223 1
126 Long_LF PAMI-176_Mouse_A-J_TMT_40ug_24pctACN_25cm_120min_20160223_OT.raw PAMI-176_Mouse_A-J.X126 PAMI-176_Mouse_A-J 40ug_24pctACN_25cm_120min_20160223 1

We perform a little cleanup of the sample annotations to generate the information needed for later data modelling, namely

  1. We extract the diet type from the condition variable.
  2. We extract the diet duration from the condition variable.
  3. We rename the Channel column to Label for more clarity with the main text.
coldata$Duration <- gsub("_.*", "", coldata$Condition) ## 1.
coldata$Diet <- gsub(".*_", "", coldata$Condition) ## 2.
colnames(coldata)[1] <- "Label" ## 3.

We will also subset the data set to reduce computational costs. If you want to run the vignette on the full data set, you can skip this chunk. We here randomly sample 500 proteins from the experiment.

proteinIds <- unique(psms$Protein.Accessions)
set.seed(1234)
psms <- psms[psms$Protein.Accessions %in% sample(proteinIds, 500), ]

The QFeatures data class

Finally, we combine the data into a QFeatures object. The QFeatures package provides infrastructure to manage and analyse quantitative features from mass spectrometry experiments. It is based on the SummarizedExperiment and MultiAssayExperiment classes. It leverages the hierarchical structure of proteomics experiments: data proteins are composed of peptides, themselves produced by spectra. Throughout the aggregation and processing of these data, the relations between assays are tracked and recorded, thus allowing users to easily navigate across spectra, peptide and protein quantitative data.

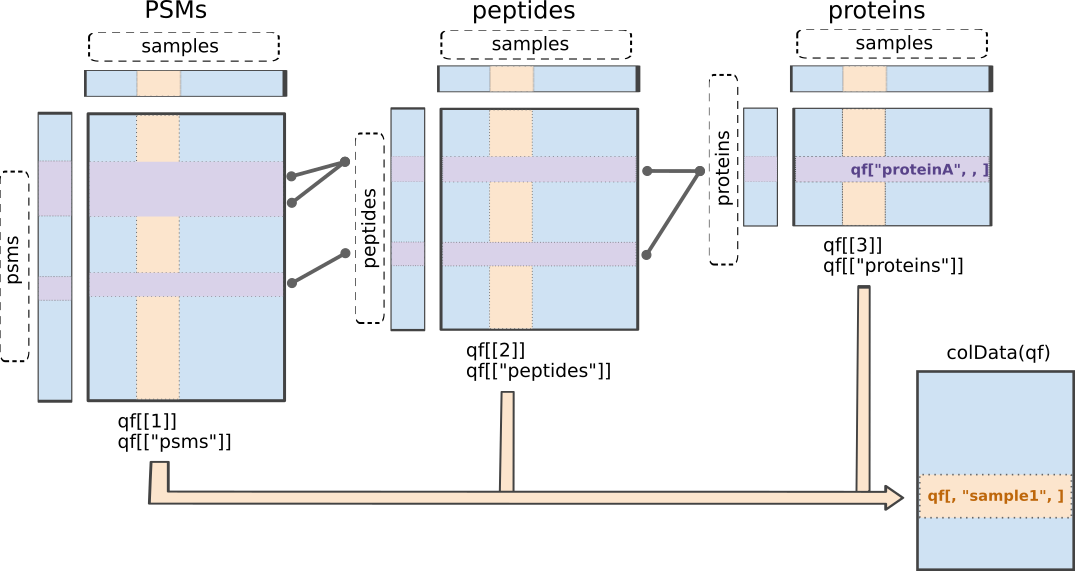

Illustration of the `QFeatures` data class.

Illustration of the QFeatures data class.

The readQFeatures() allows for seamless conversion of tabular data into a QFeatures object. In order to link the annotation table with the PSM data (from the Skyline PSM table), the annotation table must contain a runCol column with run names to be matched with the run names in the PSM table (for Skyline, it is stored in the Spectrum.File column). We also add a quantCols column in the annotation table. It will allow to link each sample to the quantification column in the PSM table. See ?readQFeatures() for more details.

coldata$runCol <- coldata$Run
coldata$quantCols <- paste0("Abundance..", coldata$Label)
mouse <- readQFeatures(psms, colData = coldata,
                       quantCols = unique(coldata$quantCols),
                       runCol = "Spectrum.File", name = "psms")
names(mouse) <- sub("^.*(Mouse.*ACN).*raw", "\\1", names(mouse))
mouse
## An instance of class QFeatures (type: bulk) with 27 sets:
##
##  [1] Mouse_A-J_TMT_40ug_14pctACN: SummarizedExperiment with 198 rows and 10 columns
##  [2] Mouse_A-J_TMT_40ug_20pctACN: SummarizedExperiment with 481 rows and 10 columns
##  [3] Mouse_A-J_TMT_40ug_22pctACN: SummarizedExperiment with 514 rows and 10 columns
##  ...
##  [25] Mouse_U-Dd_TMT_40ug_30pctACN: SummarizedExperiment with 726 rows and 10 columns
##  [26] Mouse_U-Dd_TMT_40ug_40pctACN: SummarizedExperiment with 566 rows and 10 columns
##  [27] Mouse_U-Dd_TMT_40ug_90pctACN: SummarizedExperiment with 251 rows and 10 columns

We now have a QFeatures object with 27 sets, each containing data associated with an MS run. The sample annotation can be retrieved using colData().

head(colData(mouse))
## DataFrame with 6 rows and 11 columns
##         Label   Condition           Run  BioReplicate       Mixture
##   <character> <character>   <character>   <character>   <character>
## 1         126     Long_LF PAMI-176_M... PAMI-176_M... PAMI-176_M...
## 2        127N     Long_LF PAMI-176_M... PAMI-176_M... PAMI-176_M...
## 3        127C      Long_M PAMI-176_M... PAMI-176_M... PAMI-176_M...
## 4        128N    Short_LF PAMI-176_M... PAMI-176_M... PAMI-176_M...
## 5        128C        Norm PAMI-176_M... PAMI-176_M... PAMI-176_M...
## 6        129N      Long_M PAMI-176_M... PAMI-176_M... PAMI-176_M...
##        Fraction TechRepMixture    Duration        Diet        runCol
##     <character>      <integer> <character> <character>   <character>
## 1 40ug_14pct...              1        Long          LF PAMI-176_M...
## 2 40ug_14pct...              1        Long          LF PAMI-176_M...
## 3 40ug_14pct...              1        Long           M PAMI-176_M...
## 4 40ug_14pct...              1       Short          LF PAMI-176_M...
## 5 40ug_14pct...              1        Norm        Norm PAMI-176_M...
## 6 40ug_14pct...              1        Long           M PAMI-176_M...
##       quantCols
##     <character>
## 1 Abundance....
## 2 Abundance....
## 3 Abundance....
## 4 Abundance....
## 5 Abundance....
## 6 Abundance....

Finally, the remaining PSM annotations are available for each set in the corresponding rowData.

head(rowData(mouse[[1]]))
## DataFrame with 6 rows and 39 columns
##         Checked  Confidence Identifying.Node PSM.Ambiguity Annotated.Sequence
##     <character> <character>      <character>   <character>        <character>
## 12        False        High    Mascot (C2... Unambiguou...      [K].lQHELE...
## 87        False        High    Mascot (C2... Unambiguou...      [R].nVELVD...
## 335       False        High    Mascot (C2... Unambiguou...      [K].eEScVP...
## 433       False        High    Mascot (C2... Unambiguou...      [K].dAEDQE...
## 434       False        High    Mascot (C2... Unambiguou...      [K].dAEDQE...
## 543       False        High    Mascot (C2... Unambiguou...      [K].aTEmVE...
##     Modifications X..Protein.Groups X..Proteins Master.Protein.Accessions
##       <character>         <integer>   <integer>               <character>
## 12  N-Term(TMT...                 0           1
## 87  N-Term(TMT...                 1           1                    O08528
## 335 N-Term(TMT...                 1           1                    O08715
## 433 N-Term(TMT...                 1           1                    O35685
## 434 N-Term(TMT...                 1           1                    O35685
## 543 N-Term(TMT...                 1           1                    O54724
##     Master.Protein.Descriptions Protein.Accessions Protein.Descriptions
##                     <character>        <character>          <character>
## 12                                          P13542        Myosin-8 O...
## 87                Hexokinase...             O08528        Hexokinase...
## 335               A-kinase a...             O08715        A-kinase a...
## 433               Nuclear mi...             O35685        Nuclear mi...
## 434               Nuclear mi...             O35685        Nuclear mi...
## 543               Caveolae-a...             O54724        Caveolae-a...
##     X..Missed.Cleavages    Charge DeltaScore   DeltaCn      Rank
##               <integer> <integer>  <numeric> <numeric> <integer>
## 12                    0         3         NA         0         1
## 87                    0         2     0.8679         0         1
## 335                   0         3     1.0000         0         1
## 433                   0         2     0.8491         0         1
## 434                   0         3     0.9706         0         1
## 543                   0         3     1.0000         0         1
##     Search.Engine.Rank  m.z..Da.  MH...Da. Theo..MH...Da. DeltaM..ppm.
##              <integer> <numeric> <numeric>      <numeric>    <numeric>
## 12                   2   537.944   1611.82        1611.82         0.66
## 87                   1   723.376   1445.75        1445.74         1.34
## 335                  1   927.763   2781.27        2781.27         1.78
## 433                  1   802.930   1604.85        1604.85         0.08
## 434                  1   535.623   1604.85        1604.85         0.42
## 543                  1   726.674   2178.01        2178.01         0.23
##     Deltam.z..Da. Activation.Type    MS.Order Isolation.Interference....
##         <numeric>     <character> <character>                  <numeric>
## 12        0.00035             CID         MS2                    55.1778
## 87        0.00097             CID         MS2                    23.0922
## 335       0.00165             CID         MS2                    19.8995
## 433       0.00007             CID         MS2                    21.5321
## 434       0.00022             CID         MS2                    16.0577
## 543       0.00017             CID         MS2                    27.5028
##     Average.Reporter.S.N Ion.Inject.Time..ms.  RT..min. First.Scan
##                <numeric>            <numeric> <numeric>  <integer>
## 12                  21.5               40.795   38.3689       7110
## 87                  28.4              116.000   36.9670       6602
## 335                   NA               35.000   39.5357       7534
## 433                 20.9              116.000   33.0664       5189
## 434                 81.7               30.235   33.0967       5201
## 543                  9.2               98.068   41.2553       8149
##     Spectrum.File     File.ID Quan.Info Ions.Score Identity.Strict
##       <character> <character> <logical>  <integer>       <numeric>
## 12  PAMI-176_M...        F1.1        NA         47              25
## 87  PAMI-176_M...        F1.1        NA         53              25
## 335 PAMI-176_M...        F1.1        NA         65              19
## 433 PAMI-176_M...        F1.1        NA         53              27
## 434 PAMI-176_M...        F1.1        NA         34              27
## 543 PAMI-176_M...        F1.1        NA         50              21
##     Identity.Relaxed Expectation.Value Percolator.q.Value Percolator.PEP
##            <numeric>         <numeric>          <numeric>      <numeric>
## 12                18       7.87102e-05          0.0000000      5.804e-05
## 87                18       1.54340e-05          0.0000000      8.144e-05
## 335               13       2.55413e-07          0.0000000      1.938e-06
## 433               20       3.15610e-05          0.0000000      4.442e-05
## 434               20       2.16708e-03          0.0001685      1.342e-03
## 543               14       1.36813e-05          0.0000000      1.170e-06

We can also retrieve the quantitative values for each set using assays().

assay(mouse[[1]])[1:5, 1:5]
##     PAMI-176_Mouse_A-J_TMT_40ug_14pctACN_25cm_120min_20160223_OT.raw_Abundance..126
## 12                                                                               NA
## 87                                                                         6833.269
## 335                                                                              NA
## 433                                                                       12512.472
## 434                                                                       49765.685
##     PAMI-176_Mouse_A-J_TMT_40ug_14pctACN_25cm_120min_20160223_OT.raw_Abundance..127N
## 12                                                                          395.4659
## 87                                                                        13879.3746
## 335                                                                               NA
## 433                                                                        6235.6969
## 434                                                                       21062.5639
##     PAMI-176_Mouse_A-J_TMT_40ug_14pctACN_25cm_120min_20160223_OT.raw_Abundance..127C
## 12                                                                                NA
## 87                                                                          8880.944
## 335                                                                               NA
## 433                                                                         5733.971
## 434                                                                        26067.937
##     PAMI-176_Mouse_A-J_TMT_40ug_14pctACN_25cm_120min_20160223_OT.raw_Abundance..128N
## 12                                                                          864.8956
## 87                                                                         8984.1755
## 335                                                                               NA
## 433                                                                        6134.0270
## 434                                                                       19417.5524
##     PAMI-176_Mouse_A-J_TMT_40ug_14pctACN_25cm_120min_20160223_OT.raw_Abundance..128C
## 12                                                                          3031.182
## 87                                                                          8763.722
## 335                                                                               NA
## 433                                                                         6151.314
## 434                                                                        19096.883

Note that some values are missing. It is important that missing values are encoded using NA. For MS experiments, we shoul not encode non-observed values with a zero. This is because true zeros (the peptide ion is absent from the sample) cannot be distinguished from technical zeros (the peptide was missed by the instrument). We therefore replace any zero in the quantitative data with an NA.

mouse <- zeroIsNA(mouse, names(mouse))

Data preprocessing

msqrob2 relies on the QFeatures data structure, meaning that we can directly make use of QFeatures’ data preprocessing functionality (see also the QFeatures documentation).

PSM filtering

We first filter features for which more than 70% of the intensities are missing in a run. We keep the spectrum as soon as the reporter ions are observed in at least 3 out of 10 TMT labels of the run (same cut-off as applied in Huang et al. 2020)/.

mouse <- filterNA(mouse, names(mouse), pNA = 0.7) ## 2.

We next remove PSMs that could not be mapped to a protein or that map to multiple proteins (the protein identifier contains multiple identifiers separated by a ;). We use filterFeatures() that will keep the row that fulfill the condition below. Note that Protein.Accessions is a column generated by Skyline that is available in the rowData.

mouse <- filterFeatures(
    mouse, ~ Protein.Accessions != "" & ## Remove failed protein inference
        !grepl(";", Protein.Accessions)) ## Remove protein groups

Peptide ions that were identified with multiple PSMs in a run are collapsed to the PSM with the highest summed intensity over the labels, a strategy that is also used by MSstats. We will again use filterFeatures(), but the highest summed intensity PSM information is not available in the rowData so we need to create it manually.

We therefore

  1. Make a new variable for ionID in the rowData.
  2. We calculate the rowSums for each ion.
  3. Make a new variable psmRank that ranks the PSMs for each ionID based on the summed intensity.
  4. We store the new information back in the rowData.
  5. For each ion that maps to multiple PSMs, only keep the PSM with the highest summed intensity, that is that ranks first.
for (i in names(mouse)) {
    rowdata <- rowData(mouse[[i]])
    rowdata$ionID <- paste0(rowdata$Annotated.Sequence, rowdata$Charge) ## 1.
    rowdata$rowSums <- rowSums(assay(mouse[[i]]), na.rm = TRUE) ## 2.
    rowdata <- data.frame(rowdata) |>
        group_by(ionID) |>
        mutate(psmRank = rank(-rowSums)) ## 3.
    rowData(mouse[[i]]) <- DataFrame(rowdata) ## 4.
}
mouse <- filterFeatures(mouse, ~ psmRank == 1) ## 5.

Note that we now implicitly collapsed the PSM-level data into peptide ion data, where each row represents a PSM, but also a unique ion within a run. So we will refer to the data as “PSM-level” or “ion-level” interchangeably.

Preprocessing workflow

We can now prepare the data for modelling. The workflow ensures the data complies to msqrob2’s requirements:

  1. Intensities are log-transformed.
  2. Samples are normalised.
  3. (optionally) PSMs intensities are summarised into protein abundance values for protein-level workflows.
sNames <- names(mouse)
mouse <- logTransform( ## 1.
    mouse, sNames, name = paste0(sNames, "_log"), base = 2
)
mouse <- normalize( ## 2.
    mouse, paste0(sNames, "_log"), name = paste0(sNames, "_norm"),
    method = "center.median"
)
mouse <- aggregateFeatures( ## 3.
    mouse, i = paste0(sNames, "_norm"), name = paste0(sNames, "_proteins"),
    fcol = "Protein.Accessions", fun = MsCoreUtils::medianPolish,
    na.rm=TRUE
)

We remove the reference labels that were used by the MSstatsTMT authors to obtain normalisation factors since msqrob2TMT workflows do not require normalisation from reference label. The information about which labels are normalisation labels is available from the colData, in the Condition column.

table(mouse$Condition)
##
##  Long_HF  Long_LF   Long_M     Norm Short_HF Short_LF
##       45       45       36       54       45       45

We remove any sample that is marked as Norm. We also remove sample that are annotated as Long_M since we could not find documentation for this group.

mouse <- subsetByColData(
    mouse, mouse$Condition != "Norm" & mouse$Condition != "Long_M"
)

We conclude the preprocessing by joining the assays of the different runs in a single PSM set for PSM-level models. In order to correctly match PSMs across rus, we provide the fcol argument, telling the function to join PSM with the same ionID in one line.

mouse <- joinAssays(mouse, paste0(sNames, "_norm"), fcol = "ionID", "ions_norm")

We do the same for joining the protein sets into a single set for protein-level models. Note that we don’t need to provide fcol since the function will use the set’s rownames (generated by aggregateFeatures()).

mouse <- joinAssays(mouse, paste0(sNames, "_proteins"), "proteins")

Data modelling

The preprocessed data can now be modelled to answer biologically relevant questions. But first, we need to understand the data and what are the effect to be modelled.

Experimental design

As described above, samples (adipose tissue) originate from mice that were either subject to a low-fat (LF) or high-fat (HF) diet. Moreover, each of the diet was maintained for a short duration (Short) or a long duration (Long). Note that each group contains 5 mice but the peptides from each sample have been fractionated in 9 fractions, leading to 45 units per group.

Overview of the experimental design. Taken from Plubell et al. 2017.

Overview of the experimental design. Taken from Plubell et al. 2017.

So first, we need to identify the experimental factors of interest. In this case, we are interested in the effects of diet type and the effect of diet duration. The table below confirms we have a balanced design for each condition.

table(Diet = mouse$Diet, Duration = mouse$Duration)
##     Duration
## Diet Long Short
##   HF   45    45
##   LF   45    45

Furthermore, there are potential unwanted sources of variation: the experimental unit (i.e. the mouse, BioReplicate), the fraction (Fraction), the run (Run), the TMT mixture (Mixture). Data exploration will provide a feeling about how these influence the data.

Data exploration

Data exploration aims to highlight the main sources of variation in the data prior to data modelling and can pinpoint outlying or off-behaving samples. A common approach for data exploration is to perform dimension reducion, such as Multi Dimensional Scaling (MDS). We will first extract the set to explore using getWithColData(). This function extracts the set of interest along with all the associated sample annotations (used for plot colouring).

se <- getWithColData(mouse, "proteins")

We then use the scater package to compute and plot the PCA. For technical reasons, it requires SingleCellExperiment class object, but these can easily be generated from a SummarizedExperiment object.

library("scater")
se <- runMDS(as(se, "SingleCellExperiment"), exprs_values = 1)

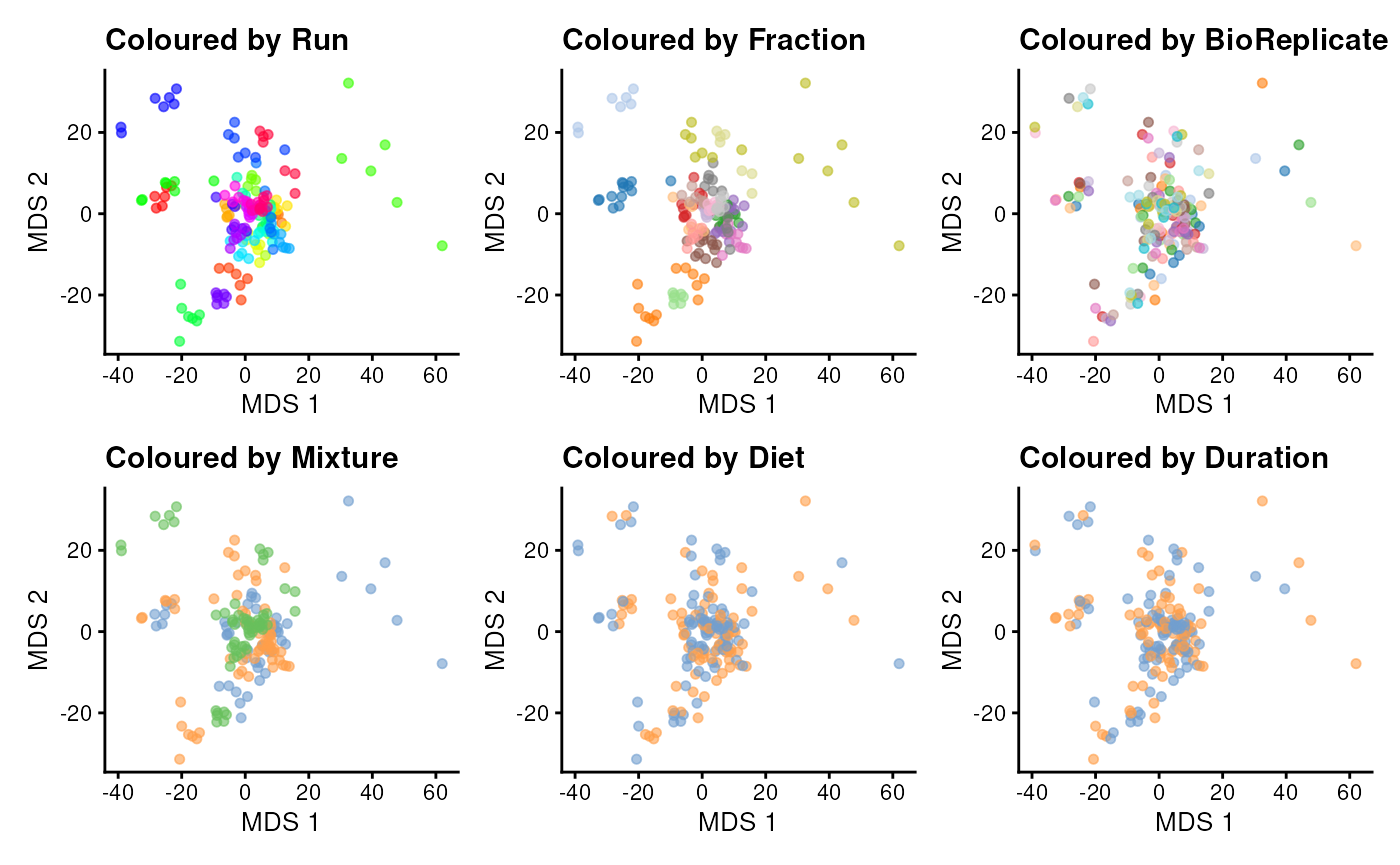

s We can now plot the MDS and colour each sample based on different potential sources of variation.

plotMDS(se, colour_by = "Run") + ggtitle("Coloured by Run") +
  scale_colour_manual(values = rainbow(27)) +
  plotMDS(se, colour_by = "Fraction") + ggtitle("Coloured by Fraction") +
  plotMDS(se, colour_by = "BioReplicate") + ggtitle("Coloured by BioReplicate") +
  plotMDS(se, colour_by = "Mixture") + ggtitle("Coloured by Mixture") +
  plotMDS(se, colour_by = "Diet") + ggtitle("Coloured by Diet") +
  plotMDS(se, colour_by = "Duration") + ggtitle("Coloured by Duration") &
  theme(legend.position = "none")

The data exploration leads to several observations:

  • The strongest source of variation is associated with the MS acquisition run.
  • Part of this run effect is influenced by which fraction it contains since samples from the same fraction tend to be closer than samples from different fractions.
  • It is difficult to identify an effect of mouse (biological replicate) because every run contains distinct mice. However, this does not exclude an effect of mice which has been identified as a potential source of variation and hence should still be modelled.
  • There is potentially also an effect of TMT mixture since samples from the same mixtures tend to cluster together (in the center of the plot). However, this effect are more subtle to detect and difficult to disentangle from the run and fraction effects.
  • Although again very subtle, we can see within each run that samples from the mice with the same diet tends to group together. However, these effects are overwhelmed by the run effects. An effect of duration is to subtle to pinpoint from the current data exploration.

Data modelling disentangles the different sources of variation, given their are properly defined in the model, hence the next section.

Sources of variation

We will now formally define the sources of variation and describe how they are modelled:

  1. Treatment of interest: we model the source of variation induced by the experimental treatment of interest as a fixed effect. Fixed effects are effect that are considered non-random, i.e. the treatment effect is assumed to be the same and reproducible across repeated experiments, but it is unknown and has to be estimated. We will include Diet as a fixed effect that models the fact that a change in diet type can induce changes in protein abundance. Similarly, we also include Duration as a fixed effect to model the change in protein abundance induces by the diet duration. Finally, we will also include an interaction between the two variables allowing that the changes in protein abundance induced by diet type can be different whether the mice were fed for a short or long duration.

  2. Biological replicate effect: the experiment involves biological replication as the adipose tissue extracts were sampled from 20 mice (5 mice per Diet x Duration combination). Replicate-specific effects occurs due to uncontrollable factors, such as social behavior, feeding behavior, physical activity, occasional injury,… Two mice will never provide exactly the same sample material, even were they genetically identical and manipulated identically. These effects are typically modelled as random effects which are considered as a random sample from the population of all possible mice and are assumed to be i.i.d normally distributed with mean 0 and constant variance, umouse∼N(0,σ2,mouse)u_{mouse} \sim N(0,\sigma^{2,\text{mouse}}). The use of random effects thus models the correlation in the data, explicitly. We expect that intensities from the same mouse are more alike than intensities between mice.

length(unique(mouse$BioReplicate))
## [1] 20
  1. Labelling effects: the 20 mouse adipose tissue samples have been labelled using 18-plex TMT. We can expect that samples measured within the same TMT label may be more similar than samples measured within different TMT labels. Since these effects may not be reproducible from one experiment to another, for instance because each TMT kit may potentially contain different impurity ratios, we can account for this correlation using a random effect for TMT label.
length(unique(mouse$Label))
## [1] 10
  1. Mixture effects: the 20 mouse samples were assigned to one out of 3 mixtures. Again, we expect protein intensities from the same mixture will be more alike than those of different mixtures. Hence, we will add a random effect for mixture.
table(mouse$Mixture)
##
##  PAMI-176_Mouse_A-J  PAMI-176_Mouse_K-T PAMI-194_Mouse_U-Dd
##                  54                  63                  63
  1. Run effects: protein intensities that are measured within the same run will be more similar than protein intensities between runs. We will use a random effect for run to explicitly model this correlation in the data. Note that each sample has been acquired in 9 fractions, each fraction being measured in a separate run. Accounting for the effects of run will also absorb the effects of fraction.
length(unique(mouse$Run))
## [1] 27

  1. Spectrum effects: we will directly estimate the treatment effect at the protein-level from PSM-level data. This will again induce additional levels of correlation. The intensities for the different reporter ions in a TMT run within the same spectrum (PSM) will be more similar than the intensities between spectra. We therefore need to add a random effect term to account for the within PSM correlation structure. Note that a spectrum here contains the data from one peptide ion within a run. Hence, modelling a random effect for spectrum boils down to modelling a random effect for peptide ion nested within run.

  2. Labelling effects nested in run: modelling the data at the PSM-level also implies that a label in a run contains multiple PSM intensities for each protein. Hence, intensities from different PSMs for a protein with the same label within a run will be more alike than intensities of different PSMs for the same protein with different labels and/or runs, and we will address this correlation with a random effect for label nested in run.

msqrob2 workflows rely on linear mixed models, which are models that can estimate and predict fixed and random effects, respectively.

Now we have identified the sources of variation, we can define a model. We will model the main effects for Diet and Duration, and a Diet:Duration interaction, to account for proteins for which the Diet effect changes according to Duration, and vice versa, which can be written as Diet + Duration + Diet:Duration, shortened into Diet * Duration. Adding the technical sources of variation, the model becomes.

model <- ~ Diet * Duration + ## (1) fixed effect for Diet and Duration with interaction
  (1 | BioReplicate) +  ## (2) random effect for biological replicate (mouse)
  (1 | Label) + ## (3) random effect for label
  (1 | Mixture) + ## (4) random effect for mixture
  (1 | Run) + ## (5) random effect for MS run
  (1 | Run:ionID) + ## (6) random effect for spectrum, i.e. ionID nested in run
  (1 | Run:Label)  ## (7) random effect for label nested in MS run

We can run the msqrob2 statistical workflow.

Run the model

The statistical workflow starts with msqrobAggregate(). The function takes the QFeatures object, extracts the quantitative values from the "ions_norm" set generated after preprocessing, and fits model. The variables defined in model are automatically retrieved from the colData (i.e. "Diet", "Duration", "Label", "Run", "Mixture", "BioReplicate") and from the rowData (i.e. "ionID"). Moreover, we tell the function how the PSM-level data is grouped to protein data through the fcol argument, here we will group PSMs by the Protein.Accessions. The function will generate a new set, proteins_msqrob, with summarised protein values. This new set will also contain the modelling output, stored in the rowData in the msqrob_psm column. More specifically, the modelling output is stored in the rowData for each protein as a statModel object, one model per row (protein). We also enable M-estimation (robust = TRUE) for improved robustness against outliers and ridge penalisation (ridge = TRUE) to stabilise the parameter estimation.

mouse <- msqrobAggregate(
    mouse, i = "ions_norm",
    formula = model,
    fcol = "Protein.Accessions",
    modelColumnName = "msqrob_psm",
    name = "proteins_msqrob",
    ridge = TRUE, robust = TRUE
)

Once the models are estimated, we can start answering biological questions.

Hypothesis testing

In this section, you will learn how to convert a biological question into a statistical hypothesis.

Difference between low fat and high fat diet after short duration

A first question one can ask is: how are protein abundance affected by diet when only considering a short diet duration? We need to convert this question in a combination of the model parameters, also referred to as a contrast. To aid defining contrasts, we will visualise the experimental design using the ExploreModelMatrix package. Since we are not interested in technical effects, we will only focus on the variables of interest, here Diet * Duration.

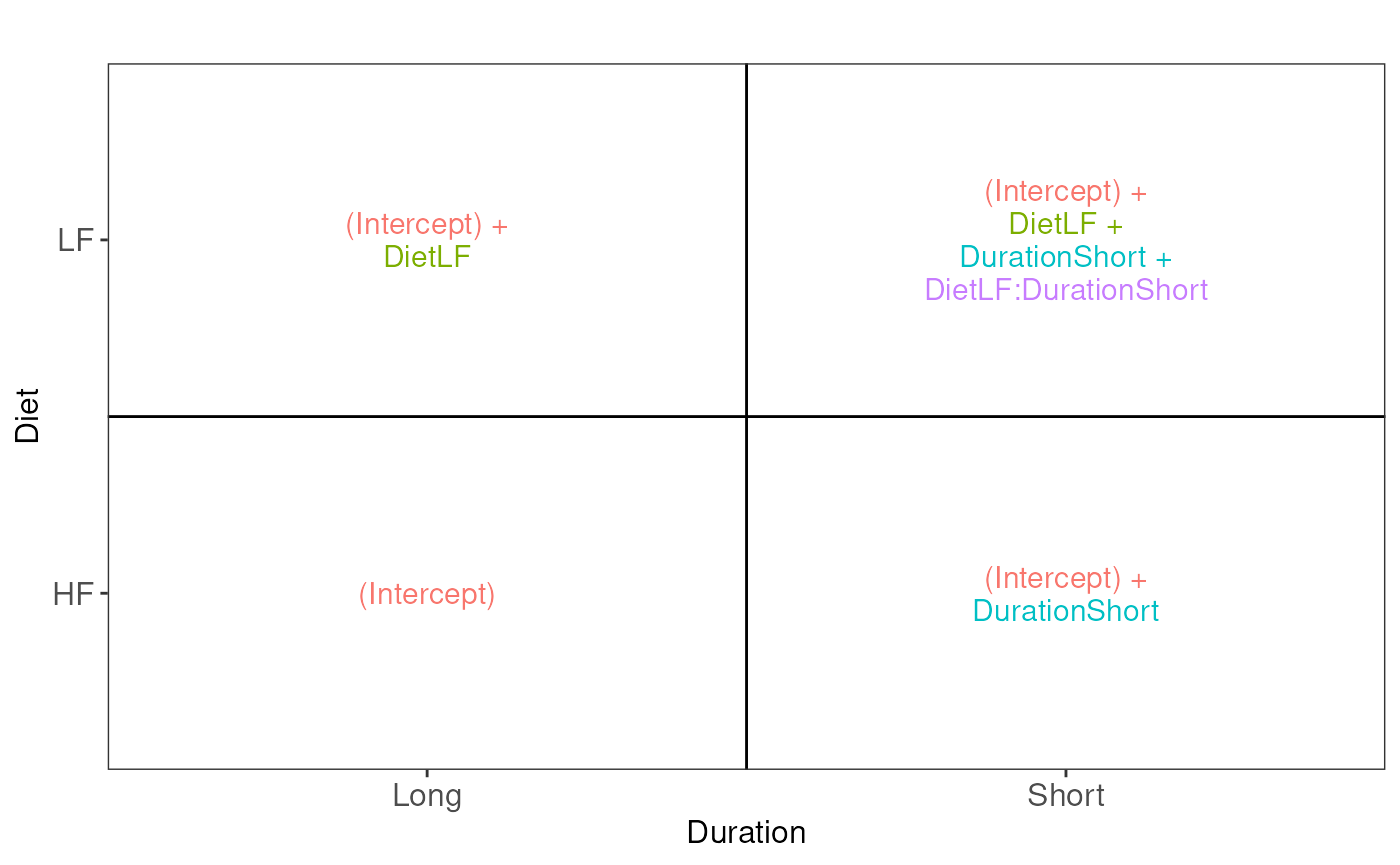

library("ExploreModelMatrix")
vd <- VisualizeDesign(
    sampleData =  colData(mouse),
    designFormula = ~ Diet * Duration,
    textSizeFitted = 4
)
vd$plotlist
## [[1]]

Assessing the difference between low-fat and high-fat diets for short duration boils down to assessing the difference between the Short_LF and Short_HF. The mean for the short low-fat diet group is defined by (Intercept) + DietLF + DurationShort + DietLF:DurationShort. The mean for the short high-fat diet group is defined by (Intercept) + DurationShort. The difference between the two results in the contrast below:

contrast <- "ridgeDietLF + ridgeDietLF:DurationShort"

Note that because we used ridge regression for modelling, we need to prefix the parameter names with ridge. We can further specify the null hypothesis, that is we are interest whether the differences between the two groups is different from zero.

(hypothesis1 <- paste(contrast, "= 0"))
## [1] "ridgeDietLF + ridgeDietLF:DurationShort = 0"

We next use makeContrast() to build a contrast matrix.

(L <- makeContrast(
    hypothesis1,
    parameterNames = c("ridgeDietLF","ridgeDurationShort","ridgeDietLF:DurationShort")
))
##                           ridgeDietLF + ridgeDietLF:DurationShort
## ridgeDietLF                                                     1
## ridgeDurationShort                                              0
## ridgeDietLF:DurationShort                                       1

We can now test our null hypothesis using hypothesisTest() which takes the QFeatures object with the fitted model and the contrast matrix we just built. Again, the results are stored in the set containing the model, here proteins_msqrob

mouse <- hypothesisTest(
    mouse, i = "proteins_msqrob", L, modelColumn = "msqrob_psm"
)

Let us retrieve the result table from the rowData. Note that the model column is named after the column names of the contrast matrix L.

inference <- rowData(mouse[["proteins_msqrob"]])[[colnames(L)]]
inference$Protein <- rownames(inference)
head(inference)
##        logFC           se       df  t pval adjPval Protein
## A2AJB7     0 1.991653e-10 68.06201  0    1       1  A2AJB7
## A2AJK6    NA           NA       NA NA   NA      NA  A2AJK6
## A2AQP0    NA           NA       NA NA   NA      NA  A2AQP0
## A2AWP8    NA           NA       NA NA   NA      NA  A2AWP8
## A6H8H2    NA           NA       NA NA   NA      NA  A6H8H2
## B1AVY7    NA           NA       NA NA   NA      NA  B1AVY7

The table contains the hypothesis testing results for every protein. Notice that some rows contain missing values. This is because data modelling resulted in a fitError for some proteins. Some models cannot be estimated either because some parameters could not be estimated due to missing values, for instance because a protein was not measured only in one of the groups of interest, or because a protein was measured from a single precursor ion alleviating the estimation of the spectrum effect.

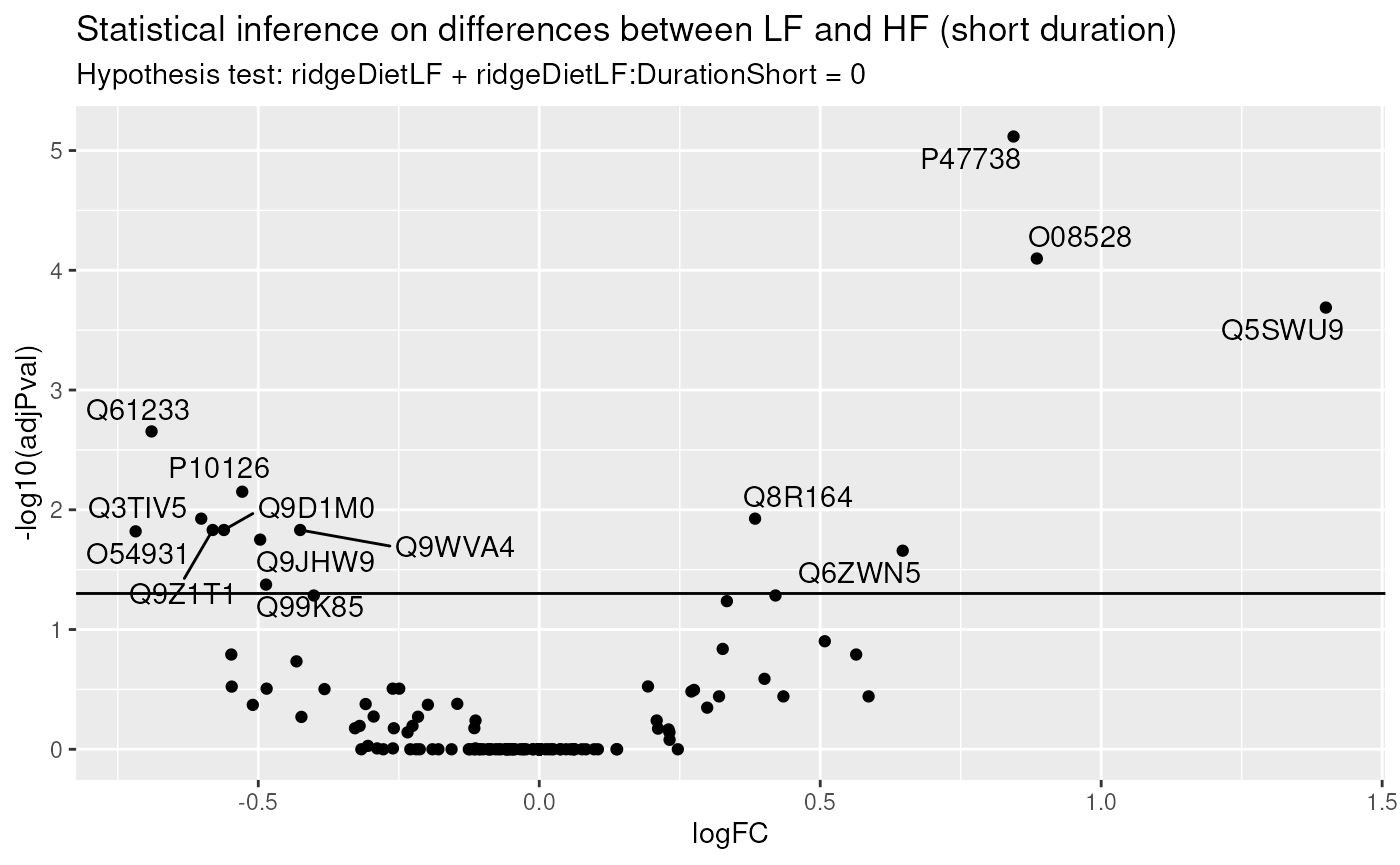

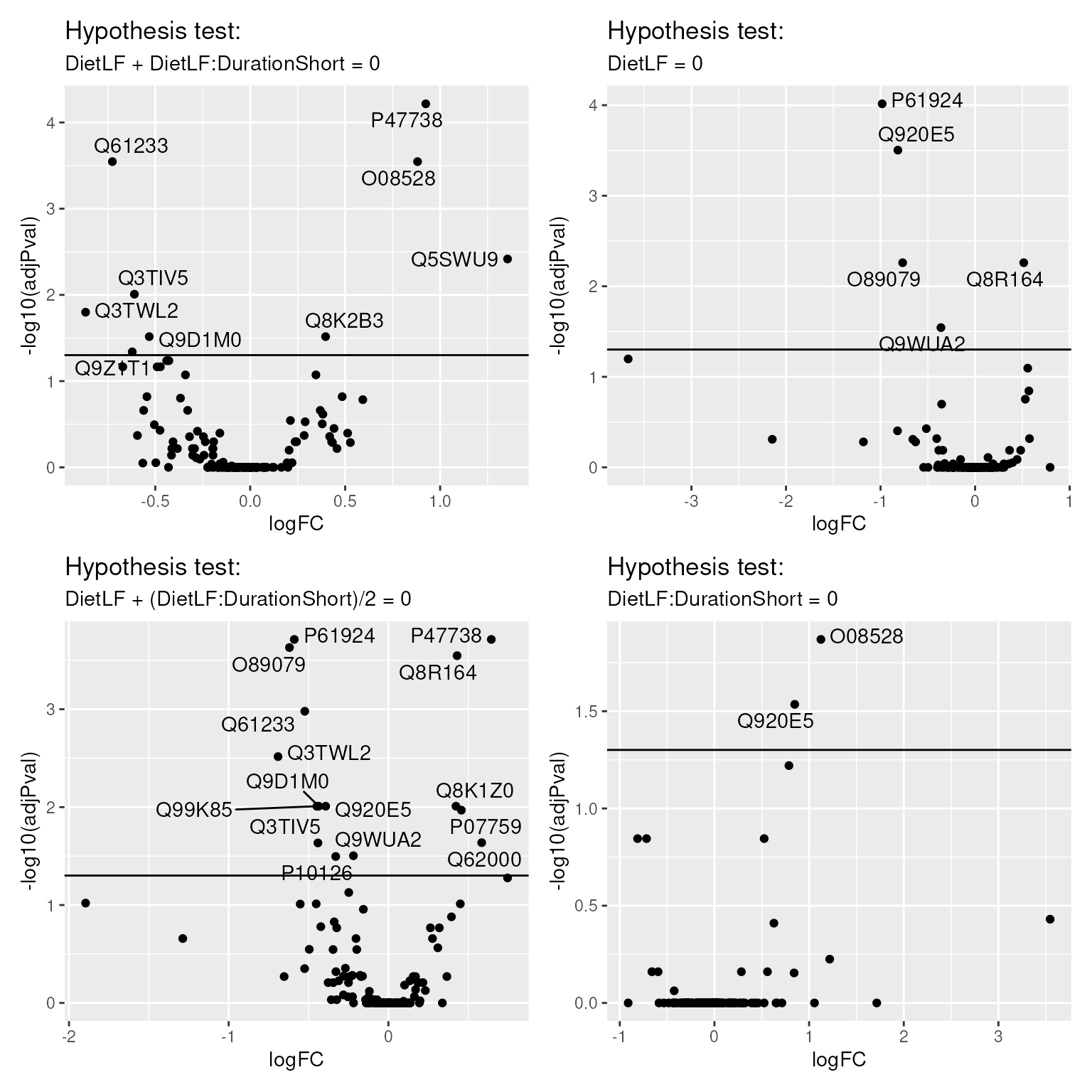

We can use the table above directly to build a volcano plot using ggplot2 functionality.

ggplot(inference) +
    aes(x = logFC, y = -log10(adjPval)) +
    geom_hline(yintercept = -log10(0.05)) +
    geom_text_repel(data = filter(inference, adjPval < 0.05),
                    aes(label = Protein)) +
    geom_point() +

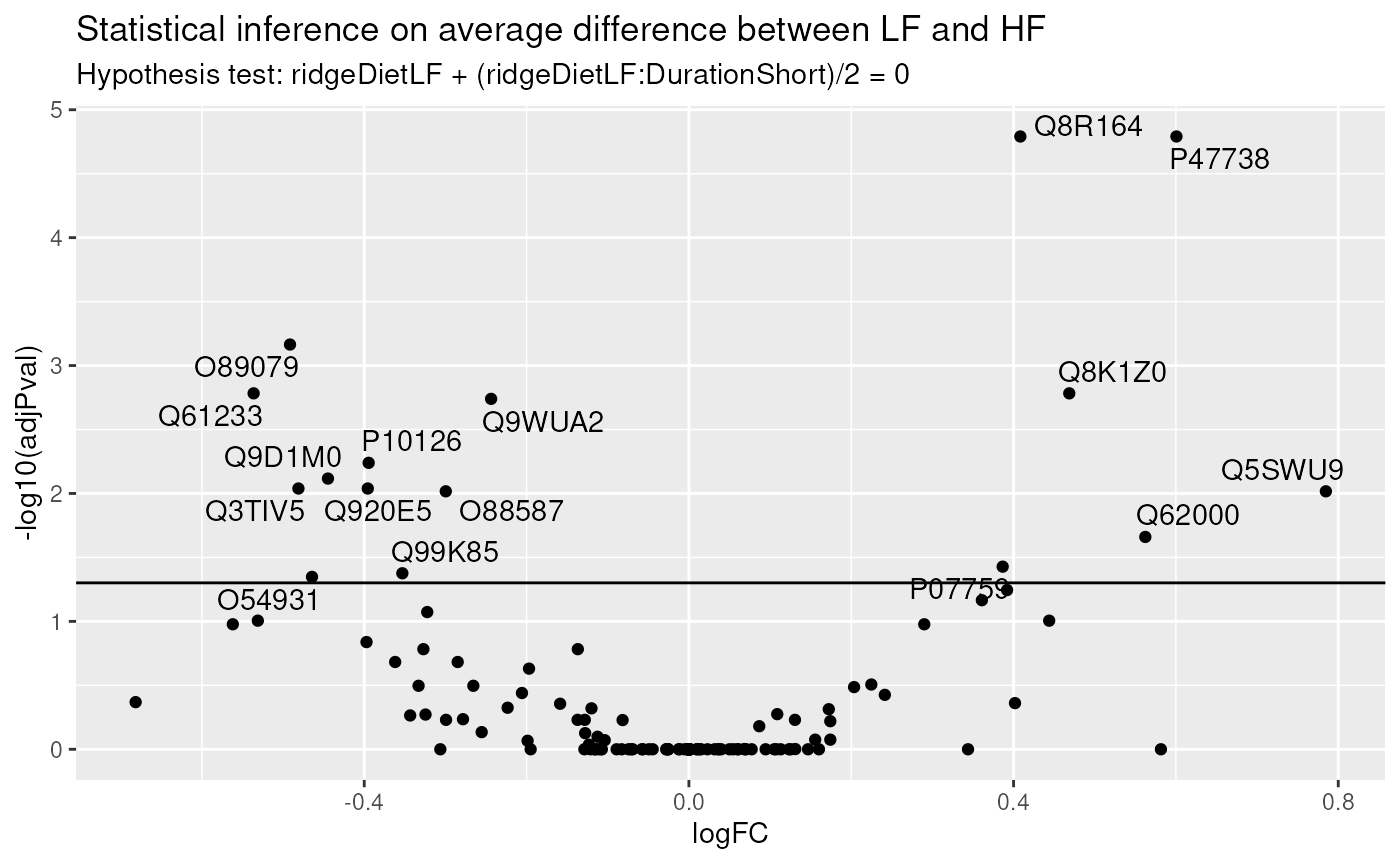

    ggtitle("Statistical inference on differences between LF and HF (short duration)",
            paste("Hypothesis test:", colnames(L), "= 0"))

In this example (remember this is a subset of the complete data set), only a few proteins pass the significance threshold of 5%. Let us visualise the protein with the largest fold change.

(targetProtein <- rownames(inference)[which.max(inference$logFC)])
## [1] "Q5SWU9"

To obtain the required data, we perform a little data manipulation pipeline:

  1. We use the QFeatures subsetting functionality to retrieve all data related to Q5SWU9 and focusing on the ions_norm set that contains the preprocessed peptide ion data used for modelling.
  2. We use longForm() to convert the object into a table suitable for plotting.
  3. We remove missing values for plotting and focus only on the data with short diet duration.
  4. We reorder the sample identifiers to improve visualisation.
ionData <- mouse[targetProtein, , "ions_norm"] |> #1
    longForm(colvars = colnames(colData(mouse)), #2
               rowvars = c("Protein.Accessions", "ionID")) |>
    data.frame() |>
    filter(!is.na(value) & Duration == "Short") |> #3
    mutate(colname = factor(colname, levels = unique(colname[order(Condition)]))) #4

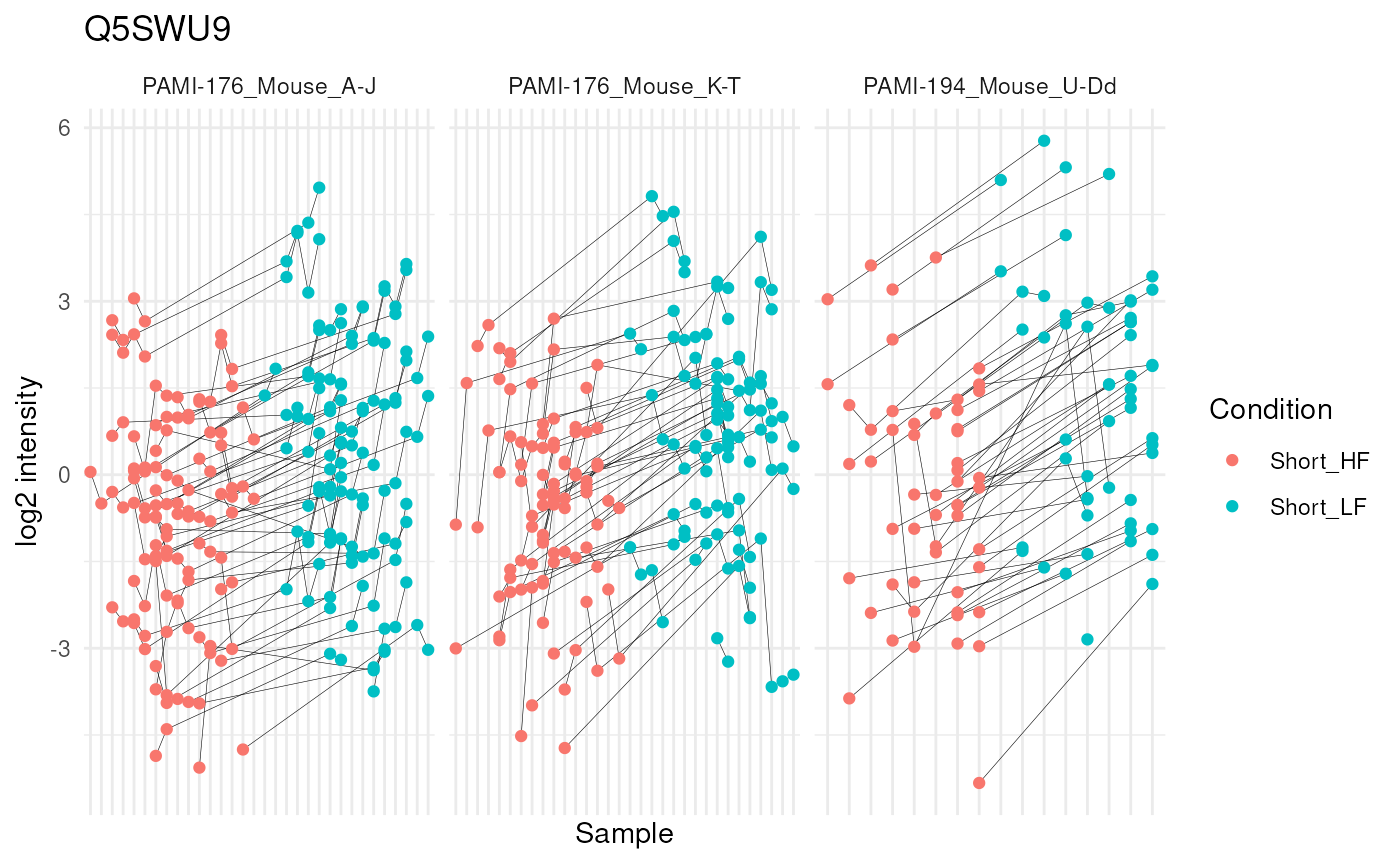

We can now plot the log normalised intensities. Since the protein is modelled at the peptide ion level, multiple ion intensities are recorded in each sample. Each ion is linked across samples using a grey line. Samples are coloured according to the diet type. Finally, we split the plot in facets, one for each mixture, to visualise the heterogeneity induced by different pools of mice.

ggplot(ionData) +
    aes(x = colname,
        y = value) +
    geom_line(aes(group = ionID), linewidth = 0.1) +
    geom_point(aes(colour = Condition)) +
    facet_grid(~ Mixture, scales = "free") +
    labs(x = "Sample", y = "log2 intensity") +
    ggtitle(targetProtein) +
    theme_minimal() +
    theme(axis.text.x = element_blank())

The statistical analysis revealed a significant increase (positive log fold change) of the abundance for Q5SWU9 in the group fed with a low-fat diet compared to the high-fat diet fed group (upon early diet duration). This finding can be visually validated as there is a systematic increase in peptide ion intensities between the low-fat diet group (blue) compared to the high-fat diet group (red).

Difference between low fat and high fat diet after long duration

The second question one can ask is what proteins are affected by diet when only considering, this time, a long diet duration. Following the same approach as above, the contrast becomes.

hypothesis2 <- "ridgeDietLF = 0"

We run the same statistical analysis pipeline as above.

L <- makeContrast(
    hypothesis2,
    parameterNames = c("ridgeDietLF","ridgeDurationShort","ridgeDietLF:DurationShort")
)
mouse <- hypothesisTest(
    mouse, i = "proteins_msqrob", L, modelColumn = "msqrob_psm"
)
inference <- rowData(mouse[["proteins_msqrob"]])[[colnames(L)]]
inference$Protein <- rownames(inference)

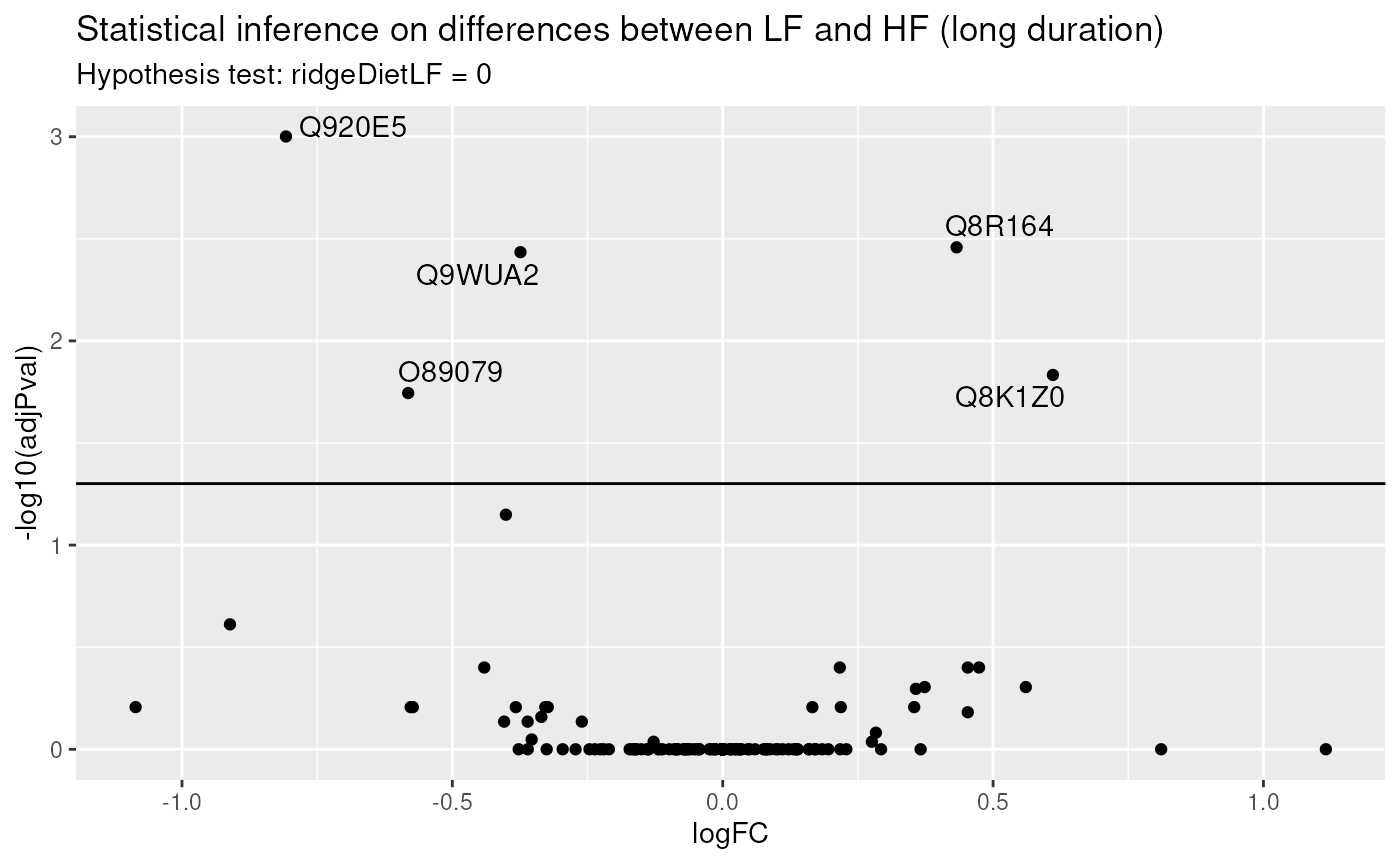

And we plot the results.

ggplot(inference) +
    aes(x = logFC, y = -log10(adjPval)) +
    geom_hline(yintercept = -log10(0.05)) +
    geom_text_repel(data = filter(inference, adjPval < 0.05),
                    aes(label = Protein)) +
    geom_point() +
    ggtitle("Statistical inference on differences between LF and HF (long duration)",
            paste("Hypothesis test:", colnames(L), "= 0"))

Again, only a few proteins come out differentially abundant between the two diets, but after a long diet duration. Surprisingly, there is only a small overlap between differential protein after short duration and after long duration. One hypothesis is that there is not sufficient data to detect a reliable difference. A solution would be to combine both short and long diet duration to retrieve an averaged systematic effect between diets that combine all available data. Another hypothesis is that diet duration may influence the effect of diet on the protein abundances. We will explore the two hypothesis in the following two sub-sections.

Average difference between low fat and high fat diet

One may want to identify the set of proteins that are systematically differentially abundant between diets, irrespective of the duration. To answer this question, we want to infer on the average difference between group LF and group HF. The average low-fat diet is defined by ((Intercept) + DietLF + DurationShort + DietLF:DurationShort + (Intercept) + DietLF)/2. The average high-fat diet group is defined by ((Intercept) + DurationShort + (Intercept))/2. The difference between the two results in the hypothesis below:

hypothesis3 <- "ridgeDietLF + (ridgeDietLF:DurationShort)/2 = 0"

We next run again the same statistical analysis pipeline as above.

L <- makeContrast(
    hypothesis3,
    parameterNames = c("ridgeDietLF","ridgeDurationShort","ridgeDietLF:DurationShort")
)
mouse <- hypothesisTest(
    mouse, i = "proteins_msqrob", L, modelColumn = "msqrob_psm"
)
inference <- rowData(mouse[["proteins_msqrob"]])[[colnames(L)]]
inference$Protein <- rownames(inference)

And we plot the results.

ggplot(inference) +
    aes(x = logFC, y = -log10(adjPval)) +
    geom_hline(yintercept = -log10(0.05)) +
    geom_text_repel(data = filter(inference, adjPval < 0.05),
                    aes(label = Protein)) +
    geom_point() +
    ggtitle("Statistical inference on average difference between LF and HF",
            paste("Hypothesis test:", gsub("ridgeCondition", "", colnames(L)), "= 0"))

We find much more significant proteins when combining all available data to infer the differences between low-fat and high-fat diets, irrespective of duration. We also retrieve a good overlap between this set of significant proteins and the two previous sets, indicating that more data helped improving the statistical power.

Interaction: does the diet effect change according to duration?

We will now explore whether the effect of diet on protein abundance may be affected by duration, i.e. we want to infer on the difference of differences. The difference between hypothesis 1 and 2 is (DietLF + DietLF:DurationShort) - (DietLF) and results in the hypothesis below:

hypothesis4 <- "ridgeDietLF:DurationShort = 0"

We can proceed with the same statistical pipeline.

L <- makeContrast(
    hypothesis4,
    parameterNames = c("ridgeDietLF","ridgeDurationShort","ridgeDietLF:DurationShort")
)
mouse <- hypothesisTest(
    mouse, i = "proteins_msqrob", L, modelColumn = "msqrob_psm"
)
inference <- rowData(mouse[["proteins_msqrob"]])[[colnames(L)]]
inference$Protein <- rownames(inference)

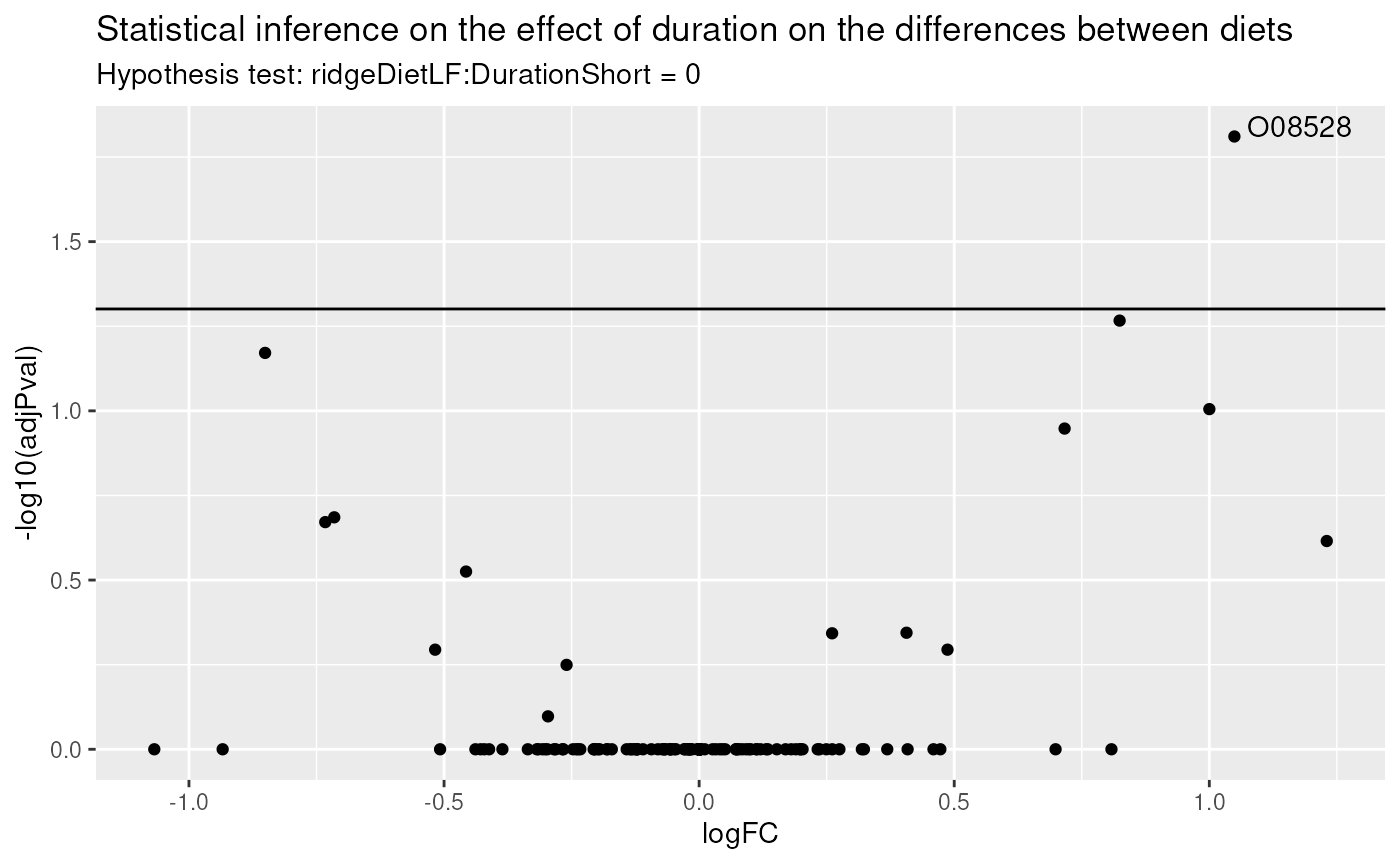

And we plot the results.

ggplot(inference) +
    aes(x = logFC, y = -log10(adjPval)) +
    geom_hline(yintercept = -log10(0.05)) +
    geom_text_repel(data = filter(inference, adjPval < 0.05),
                    aes(label = Protein)) +
    geom_point() +
    ggtitle("Statistical inference on the effect of duration on the differences between diets",
            paste("Hypothesis test:", colnames(L), "= 0"))

There is only one protein for which duration impacts the effect of diet. Let us visually explore these changes for the most significant protein.

(targetProtein <- rownames(inference)[which.min(inference$adjPval)])
## [1] "O08528"

We use again Qfeatures’s data manipulation pipeline.

ionData <- mouse[targetProtein, , "ions_norm"] |> #1
    longForm(colvars = colnames(colData(mouse)), #2
             rowvars = c("Protein.Accessions", "ionID")) |>
    data.frame() |>
    filter(!is.na(value)) |> #3
    mutate(colname = factor(colname, levels = unique(colname[order(Diet)]))) #4

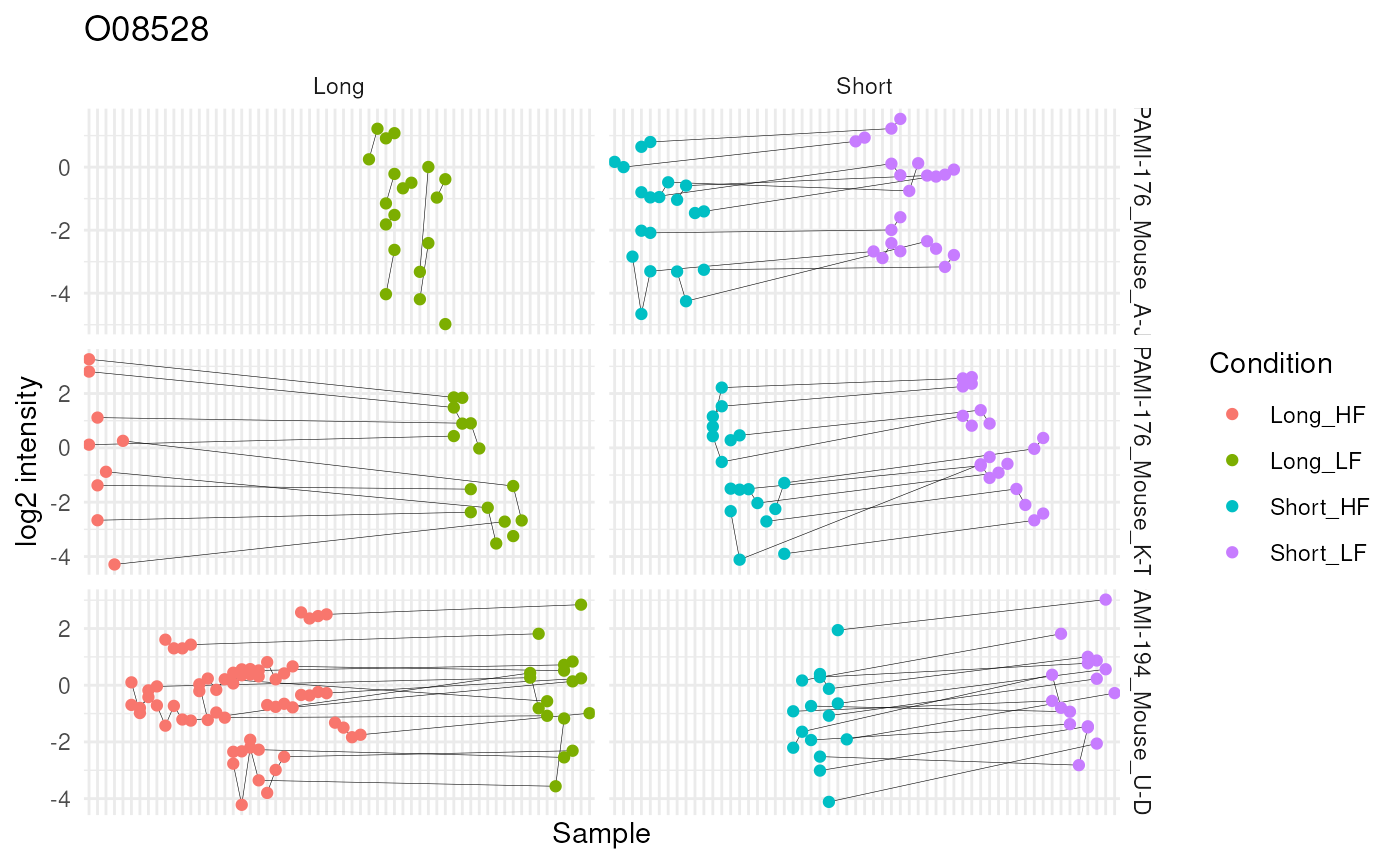

And we explore the peptide ion data by visualising the differences between LF and HF separately for each mixture and diet duration in order to highlight changes in direction between these differences according to duration. We link data points belonging to the same peptide ion using a grey line.

ggplot(ionData) +
    aes(x = colname,
        y = value) +
    geom_line(aes(group = ionID), linewidth = 0.1) +
    geom_point(aes(colour = Condition)) +
    facet_grid(Mixture ~ Duration, scales = "free") +
    labs(x = "Sample", y = "log2 intensity") +
    ggtitle(targetProtein) +
    theme_minimal() +
    theme(axis.text.x = element_blank())

The graph hints towards a slight increase in protein abundance in the low-fat diet group compared to the high-fat diet group during a short diet duration, but this increase disappears after a long diet duration. However, the visual inspection of the results also shows that the result rely on sparse and highly unbalanced data. The results may hence require further experimental validation.

Note that we performed the statistical analysis for each hypothesis separately. However, msqrob2 can assess multiple hypothesis at once.

L <- makeContrast(
    c(hypothesis1, hypothesis2, hypothesis3, hypothesis4),
    parameterNames = c("ridgeDietLF","ridgeDurationShort","ridgeDietLF:DurationShort")
)
mouse <- hypothesisTest(
    mouse, i = "proteins_msqrob", L,
    modelColumn = "msqrob_psm", overwrite = TRUE
)

Note that since we already generated results for the contrast, we overwrite the results with the argument overwrite = TRUE.

We retrieve the inference tables from the rowData to generate the volcano plot.

inferenceTables <- rowData(mouse[["proteins_msqrob"]])[, colnames(L)]

We here use a lapply() loop to generate the plots. The code chunk is elaborate, but follows the same structure as in the previous section. This generates a list of volcano plots, one for each hypothesis.

volcanoPlots <- lapply(colnames(inferenceTables), function(i) {
    inference <- inferenceTables[[i]]
    inference$Protein <- rownames(inference)
    ggplot(inference) +
        aes(x = logFC, y = -log10(adjPval)) +
        geom_hline(yintercept = -log10(0.05)) +
        geom_text_repel(data = filter(inference, adjPval < 0.05),
                        aes(label = Protein)) +
        geom_point() +
        ggtitle("Hypothesis test:",
                paste(gsub("ridge", "", i), "= 0"))
})

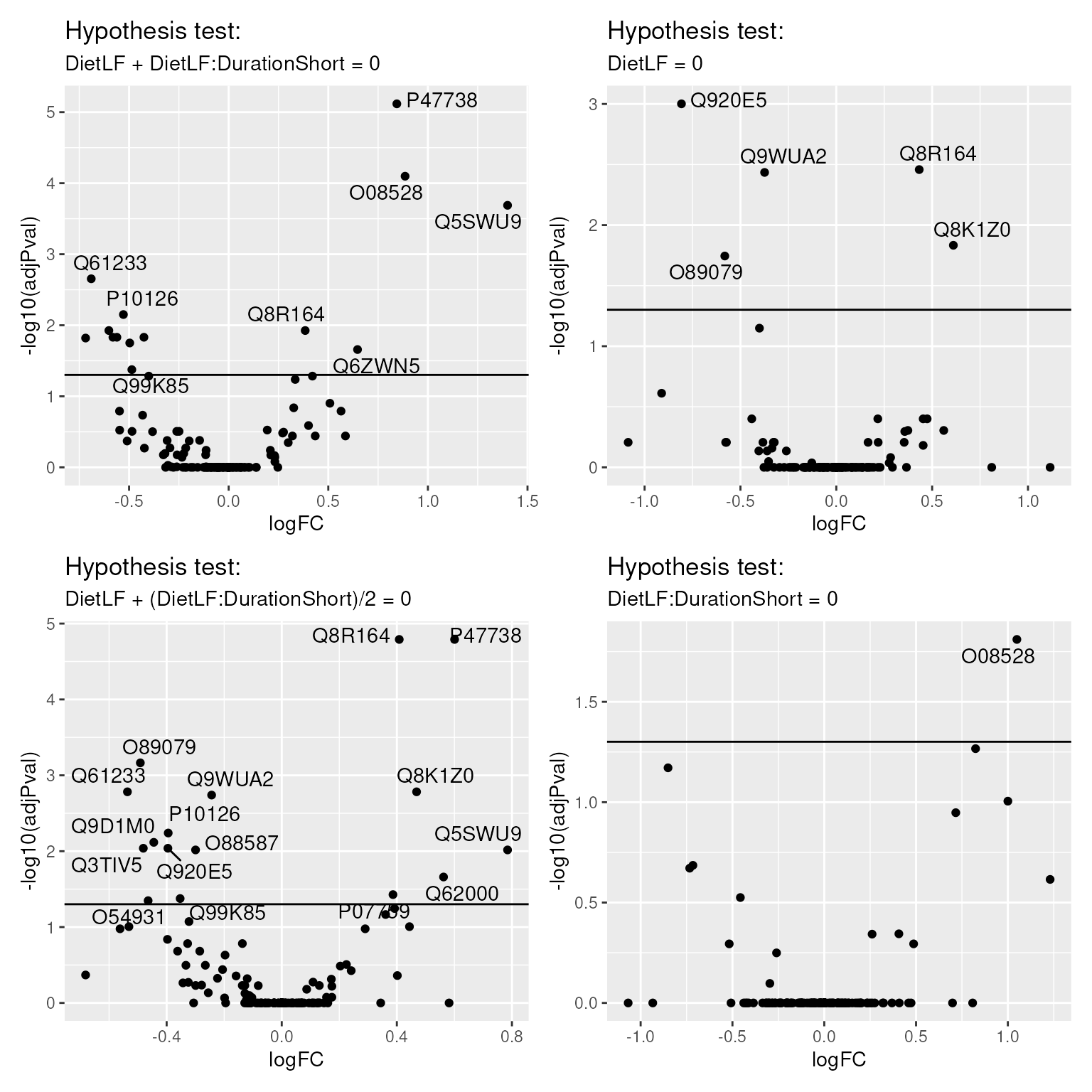

We combine all the plots in a single figure using the patchwork packages.

wrap_plots(volcanoPlots)

Protein-level model

This section illustrate data modelling at the protein level instead of the PSM level as shown in the previous sections.

Here, we work with a workflow where the peptide ion intensities are summarised within each run. This has already been done in the preprocessing. Note, that we no longer have multiple abundance values for a protein in the same label of a run. Hence, we can omit the nested effects for label and ionID in run.

modelSum <- ~ Diet * Duration + ## fixed effect for Diet and Duration with interaction
        (1 | Label) + ## (1) random effect for label
        (1 | Mixture) + ## (2) random effect for mixture
        (1 | Run) + ## (3) random effect for MS run
        (1 | BioReplicate)  ## (6) random effect for biorepeat (mouse)

For protein-level modelling, we use msqrob() instead of msqrobAggregate(), but their function arguments closely overlap.

mouse <- msqrob(
    mouse, i = "proteins",
    formula = modelSum,
    modelColumnName = "msqrob_rrilmm",
    ridge = TRUE, robust = TRUE
)

We perform hypothesis tests for the early, late, average and interaction effects. Note, that the specification of contrasts for the fixed effects remains the same.

mouse <- hypothesisTest(
    mouse, i = "proteins", L, modelColumn = "msqrob_rrilmm"
)

The inference tables were all stored in the rowData as separate columns, like previously.

inferenceTablesSum <- rowData(mouse[["proteins"]])[, colnames(L)]

We here use again the lapply() loop that generates the list of volcano plots, one for each hypothesis.

volcanoPlotsSum <- lapply(names(inferenceTablesSum), function(i) {
    inference <- inferenceTablesSum[[i]]
    inference$Protein <- rownames(inference)
    ggplot(inference) +
        aes(x = logFC, y = -log10(adjPval)) +
        geom_hline(yintercept = -log10(0.05)) +
        geom_text_repel(data = filter(inference, adjPval < 0.05),
                        aes(label = Protein)) +
        geom_point() +
        ggtitle("Hypothesis test:",
                paste(gsub("tests_|ridge", "", i), "= 0"))
})
wrap_plots(volcanoPlotsSum)

Conclusion

In this vignette, we have demonstrated the application of msqrob2TMT workflows on a real-life case study.

The preprocessing workflow relies on the the QFeatures package. The package provides functionality to carry out many steps like data filtering, missing values management, normalisation, log-transformation, imputation, summarisation, etc. The functions also provide different methods for each step, meaning that the preprocessing pipeline can be easily adapted to the researcher’s needs based on their experiment and data set.

Once preprocessed, we use the msqrob2 package to model all sources of variability as identified from the experiment: effect of diet and duration, effect of the MS acquisition run, effect of TMT mixture, effect of spectrum, and effect of sample. Modelling these different sources of variability allows to correctly infer changes in protein abundances between groups of interest while using PSM-level data, although we also illustrate how to model the data at the protein level.

The experiment aims to understand the proteomic changes in mouse adipose tissue that occur upon feeding the mice with low-fat or high-fat diets, during a short or a long duration. We showed how to model these data as two factor and how to translate biological questions to statistical hypothesis and contrast matrices using our msqrob2TMT workflow. To allow for the diet duration to influence the impact of diet type, we included an interaction term. The unique feature of msqrob2 is that its flexible approach can include more than 2 variables (with multiple interaction terms) as well as including numerical variables, which may be essential in other experimental contexts.

Modelling TMT-based data with biological replication leads to one of the most complex designs. These have to be further complexified with upcoming single-cell proteomics design where a new source of variability arises as cells belonging to the same experimental unit (subject or cell culture) are more similar than cells belonging to different experimental units. However, the model simplifies for other use cases. For instance, we saw how a protein-level model upon aggregation simplifies the model. However, spectrum effects can no longer be accounted for. This means that an appropriate summarisation approach is needed to correctly account for these spectrum effects when computing the summaries. Median polish (exemplified here) or robust summary do account for this, at least partially depending on the experimental design. Label-free experiments, which do not perform chemical labelling of the samples, do not contain labelling effects which therefore are omitted. Moreover, every sample is acquired as part of a single run hence no run effect can be modelled. This simplified model is easier to understand but bear in mind that the unmodelled effects (eg. spectrum effects or run effect) may end up increasing the residual variance, hence reduce statistical power.

Hence, we here demonstrated the power and flexibility of msqrob2 and the msqrob2TMT workflows to help researchers answer biologically-relevant questions from their MS proteomics data.

Citation

Vandenbulcke S, Vanderaa C, Crook O, Martens L, Clement L. msqrob2TMT: robust linear mixed models for inferring differential abundant proteins in labelled experiments with arbitrarily complex design. bioRxiv. Published online March 29, 2024:2024.03.29.587218. doi:10.1101/2024.03.29.587218

License

This vignette is distributed under a Artistic-2.0 license.

Session info

## R version 4.5.1 (2025-06-13)
## Platform: x86_64-pc-linux-gnu
## Running under: Ubuntu 24.04.2 LTS
##
## Matrix products: default
## BLAS:   /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3
## LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.26.so;  LAPACK version 3.12.0
##
## locale:
##  [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
##  [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
##  [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
##  [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
##  [9] LC_ADDRESS=C               LC_TELEPHONE=C
## [11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
##
## time zone: Etc/UTC
## tzcode source: system (glibc)
##
## attached base packages:
## [1] stats4    stats     graphics  grDevices utils     datasets  methods
## [8] base
##
## other attached packages:
##  [1] ExploreModelMatrix_1.21.0   scater_1.37.0
##  [3] scuttle_1.19.0              SingleCellExperiment_1.31.1
##  [5] BiocFileCache_2.99.6        dbplyr_2.5.1
##  [7] BiocParallel_1.43.4         patchwork_1.3.2
##  [9] ggrepel_0.9.6               ggplot2_4.0.0
## [11] dplyr_1.1.4                 msqrob2_1.17.1
## [13] QFeatures_1.19.3            MultiAssayExperiment_1.35.9
## [15] SummarizedExperiment_1.39.1 Biobase_2.69.0
## [17] GenomicRanges_1.61.2        Seqinfo_0.99.2
## [19] IRanges_2.43.0              S4Vectors_0.47.0
## [21] BiocGenerics_0.55.1         generics_0.1.4
## [23] MatrixGenerics_1.21.0       matrixStats_1.5.0
##
## loaded via a namespace (and not attached):
##   [1] RColorBrewer_1.1-3      jsonlite_2.0.0          magrittr_2.0.4
##   [4] ggbeeswarm_0.7.2        farver_2.1.2            nloptr_2.2.1
##   [7] rmarkdown_2.29          fs_1.6.6                ragg_1.5.0
##  [10] vctrs_0.6.5             memoise_2.0.1           minqa_1.2.8
##  [13] htmltools_0.5.8.1       S4Arrays_1.9.1          BiocBaseUtils_1.11.2
##  [16] curl_7.0.0              BiocNeighbors_2.3.1     SparseArray_1.9.1
##  [19] sass_0.4.10             bslib_0.9.0             htmlwidgets_1.6.4
##  [22] desc_1.4.3              plyr_1.8.9              httr2_1.2.1
##  [25] cachem_1.1.0            igraph_2.1.4            mime_0.13
##  [28] lifecycle_1.0.4         pkgconfig_2.0.3         rsvd_1.0.5
##  [31] Matrix_1.7-4            R6_2.6.1                fastmap_1.2.0
##  [34] shiny_1.11.1            rbibutils_2.3           clue_0.3-66
##  [37] digest_0.6.37           irlba_2.3.5.1           textshaping_1.0.3
##  [40] RSQLite_2.4.3           beachmat_2.25.5         filelock_1.0.3
##  [43] labeling_0.4.3          abind_1.4-8             compiler_4.5.1
##  [46] bit64_4.6.0-1           withr_3.0.2             S7_0.2.0
##  [49] viridis_0.6.5           DBI_1.2.3               MASS_7.3-65
##  [52] rappdirs_0.3.3          DelayedArray_0.35.2     tools_4.5.1
##  [55] vipor_0.4.7             beeswarm_0.4.0          httpuv_1.6.16
##  [58] glue_1.8.0              promises_1.3.3          nlme_3.1-168
##  [61] grid_4.5.1              cluster_2.1.8.1         reshape2_1.4.4
##  [64] gtable_0.3.6            tidyr_1.3.1             BiocSingular_1.25.0
##  [67] ScaledMatrix_1.17.0     XVector_0.49.0          pillar_1.11.0
##  [70] stringr_1.5.2           limma_3.65.4            later_1.4.4
##  [73] rintrojs_0.3.4          splines_4.5.1           lattice_0.22-7
##  [76] bit_4.6.0               tidyselect_1.2.1        knitr_1.50
##  [79] reformulas_0.4.1        gridExtra_2.3           ProtGenerics_1.41.0
##  [82] shinydashboard_0.7.3    xfun_0.53               statmod_1.5.0
##  [85] DT_0.34.0               stringi_1.8.7           lazyeval_0.2.2
##  [88] yaml_2.3.10             boot_1.3-32             evaluate_1.0.5
##  [91] codetools_0.2-20        MsCoreUtils_1.21.0      tibble_3.3.0
##  [94] BiocManager_1.30.26     cli_3.6.5               xtable_1.8-4
##  [97] systemfonts_1.2.3       Rdpack_2.6.4            jquerylib_0.1.4
## [100] Rcpp_1.1.0              png_0.1-8               parallel_4.5.1
## [103] pkgdown_2.1.3           blob_1.2.4              AnnotationFilter_1.33.0
## [106] lme4_1.1-37             viridisLite_0.4.2       scales_1.4.0
## [109] purrr_1.1.0             crayon_1.5.3            BiocStyle_2.37.1
## [112] rlang_1.1.6             cowplot_1.2.0           shinyjs_2.1.0
